In this demonstration, I’ll walk-through a multiple regression analysis using appropriate R code.
# Load required libraries
library(ggplot2)
library(car)Loading required package: carDatalibrary(MASS)
library(lmtest)Loading required package: zoo
Attaching package: 'zoo'The following objects are masked from 'package:base':
as.Date, as.Date.numericlibrary(nlme) # For GLS modelsWe’ll start by creating a synthetic dataset to simulate a real-world sports scenario.
The dataset includes predictors (experience, training hours, team support, injuries, and motivation) and we want to use these predictors to estimate player performance.
set.seed(123)
n <- 100 # N observations to create
player_experience <- runif(n, 1, 15) # Years of experience, ranging from 1-15
training_hours <- rnorm(n, mean=10, sd=3) # Weekly training hours
team_support <- sample(1:5, n, replace=TRUE) # Categorical variable: Team support rating (1-5)
injuries <- rpois(n, lambda=2) # Count of injuries
motivation <- rnorm(n, mean=7, sd=1.5) # A motivation scale (1-10)
# Generate performance scores based on predictors with noise
performance <- 50 + 3 * player_experience + 2.5 * training_hours +
5 * team_support - 4 * injuries + 2 * motivation + rnorm(n, mean=0, sd=5)
# Create data frame
sports_data <- data.frame(player_experience, training_hours, team_support, injuries, motivation, performance)As always, we would begin by examining the relationships between different predictors (e.g., experience) and our outcome variable (performance). For example:
# Visualise correlation between experience and performance
ggplot(sports_data, aes(x=player_experience, y=performance)) +
geom_point() +
geom_smooth(method="lm", se=FALSE, color="blue") +
labs(title="Player Experience vs Performance", x="Experience (years)", y="Performance")`geom_smooth()` using formula = 'y ~ x'
However, the strength of multiple regression is that it allows us to model the relationship between a dependent variable (performance) and multiple independent variables.
Here’s the basic model we can use.
It shows that we are regressing performance (dependent variable) on five independent variables: player_experience, training_hours, team_support, injuries, and motivation.
model <- lm(performance ~ player_experience + training_hours + team_support + injuries + motivation, data=sports_data) # create the regression model
summary(model) # print a summary of the model
Call:
lm(formula = performance ~ player_experience + training_hours +
team_support + injuries + motivation, data = sports_data)
Residuals:
Min 1Q Median 3Q Max
-13.4340 -3.2130 0.5119 3.3799 12.2918
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 53.6517 3.9952 13.429 < 2e-16 ***
player_experience 2.9232 0.1332 21.947 < 2e-16 ***
training_hours 2.5315 0.1868 13.551 < 2e-16 ***
team_support 4.8071 0.3446 13.948 < 2e-16 ***
injuries -3.8626 0.3801 -10.162 < 2e-16 ***
motivation 1.5688 0.3588 4.372 3.18e-05 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 5.239 on 94 degrees of freedom
Multiple R-squared: 0.9045, Adjusted R-squared: 0.8994
F-statistic: 178.1 on 5 and 94 DF, p-value: < 2.2e-16How do we interpret this output?
At the top, we can see information about the residuals. Recall that residuals represent the difference between actual and predicted values.
Next, we see the model coefficients.
The ‘Estimate’ is the estimated impact of each predictor on performance.
The statistical significance (p-values, shown as Pr(>|t|) indicates whether each predictor significantly affects performance (*** means p-value < 0.001, which is highly significant).
In this case all predictors are statistically significant (p-values < 0.001), meaning they have a real impact on performance.
Residual Standard Error (RSE) measures the average deviation of the observed values from the fitted regression line. It quantifies the typical size of the residuals.
In this case, an RSE of 5.24 means that, on average, the predicted performance values differ from the actual values by about 5.24 points.
While R² tells us how well the model explains variation, RSE gives an absolute measure of model fit in the original units of performance.
Lower RSE is better, indicating that the model’s predictions are closer to actual values. Compare RSE with the range of response variable (performance):
These numbers tell us some important information about how effective our model is in predicting the outcome (in this case, performance).
R-squared (0.905) means that the model explains 90% of the variance in performance.
Thed adjusted R-squared (0.899) adjusts for the number of predictors and is slightly lower but still high, indicating a strong model fit.
The F-statistic tests whether at least one predictor significantly improves the model.
Before interpreting the model, we should check key assumptions to ensure the validity of our findings.
Assumption: The relationship between independent variables and the dependent variable is linear.
Interpretation: The residuals vs fitted plot should show no clear pattern; a random scatter suggests linearity holds.
plot(model, which=1)
In multiple regression, we assume that our independent variables are not too highly correlated with each other (multicollinearity).
A Variance Inflation Factor (VIF) greater than 10 indicates severe multicollinearity, which can distort coefficient estimates.
vif(model)player_experience training_hours team_support injuries
1.018647 1.054350 1.007815 1.013168
motivation
1.063537 Interaction effects occur when the effect of one predictor variable on the dependent variable depends on the value of another predictor. In other words, the relationship between player_experience and performance might be different depending on training_hours.
For example:
If training_hours is high, experience might have a stronger positive impact on performance.
If training_hours is low, experience might not contribute as much to performance.
If an interaction exists, it means that the combined effect of experience and training is not simply additive; one influences how the other works.
We can include an interaction term in our regression model using the * operator.
player_experience * training_hours expands to:
player_experience
training_hours
player_experience:training_hours (the interaction term)
model_interaction <- lm(performance ~ player_experience * training_hours + team_support + injuries + motivation, data=sports_data)
summary(model_interaction)
Call:
lm(formula = performance ~ player_experience * training_hours +
team_support + injuries + motivation, data = sports_data)
Residuals:
Min 1Q Median 3Q Max
-13.389 -2.991 0.545 3.298 12.329
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 56.04021 5.11760 10.950 < 2e-16 ***
player_experience 2.56224 0.49978 5.127 1.60e-06 ***
training_hours 2.24372 0.42717 5.253 9.47e-07 ***
team_support 4.80929 0.34546 13.921 < 2e-16 ***
injuries -3.83504 0.38274 -10.020 < 2e-16 ***
motivation 1.62818 0.36828 4.421 2.66e-05 ***
player_experience:training_hours 0.03630 0.04843 0.750 0.455
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 5.252 on 93 degrees of freedom
Multiple R-squared: 0.9051, Adjusted R-squared: 0.899
F-statistic: 147.8 on 6 and 93 DF, p-value: < 2.2e-16The coefficient for player_experience (2.56) tells us the effect of experience when training_hours is zero.
The coefficient for training_hours (2.24) tells us the effect of training when experience is zero.
The interaction term (player_experience:training_hours= 0.04) is NOT statistically significant (p > 0.05), indicating that experience and training together do NOT impact performance in a non-additive way.
A positive interaction coefficient (0.04) means that higher experience amplifies the effect of training. However, this interaction effect is not significant.
If interaction effects exist, failing to account for them can mislead our interpretation. The effect of one predictor can change based on another predictor, leading to incorrect conclusions if ignored.
If the interaction term is significant, we must include it in the model. If it’s not significant, the simpler model without interaction should be preferred (as is the case here).
Different estimation techniques are used to handle different statistical issues:
lm().OLS is the default estimation technique within the ‘lm()’ function and should be used unless you suspect there are issues within your data.
GLS handles situations where we have correlated residuals:
gls_model <- gls(performance ~ player_experience + training_hours + team_support + injuries + motivation, data=sports_data)
summary(gls_model)Generalized least squares fit by REML
Model: performance ~ player_experience + training_hours + team_support + injuries + motivation
Data: sports_data
AIC BIC logLik
626.8707 644.6737 -306.4353
Coefficients:
Value Std.Error t-value p-value
(Intercept) 53.65168 3.995170 13.429137 0
player_experience 2.92325 0.133199 21.946545 0
training_hours 2.53151 0.186819 13.550607 0
team_support 4.80714 0.344641 13.948243 0
injuries -3.86258 0.380089 -10.162306 0
motivation 1.56884 0.358829 4.372117 0
Correlation:
(Intr) plyr_x trnng_ tm_spp injurs
player_experience -0.373
training_hours -0.593 0.054
team_support -0.332 0.011 0.037
injuries -0.112 -0.027 -0.108 0.024
motivation -0.785 0.131 0.200 0.080 -0.033
Standardized residuals:
Min Q1 Med Q3 Max
-2.56408941 -0.61325485 0.09770125 0.64510595 2.34608687
Residual standard error: 5.239269
Degrees of freedom: 100 total; 94 residualWLS accounts for heteroscedasticity within the data:
weights <- 1 / abs(residuals(model))
wls_model <- lm(performance ~ player_experience + training_hours + team_support + injuries + motivation, weights=weights, data=sports_data)
summary(wls_model)
Call:
lm(formula = performance ~ player_experience + training_hours +
team_support + injuries + motivation, data = sports_data,
weights = weights)
Weighted Residuals:
Min 1Q Median 3Q Max
-3.6709 -1.7755 0.4871 1.8013 3.4592
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 53.38771 1.70789 31.26 <2e-16 ***
player_experience 2.91290 0.05629 51.75 <2e-16 ***
training_hours 2.56368 0.09347 27.43 <2e-16 ***
team_support 4.83638 0.15930 30.36 <2e-16 ***
injuries -3.97195 0.21423 -18.54 <2e-16 ***
motivation 1.59119 0.13546 11.75 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.065 on 94 degrees of freedom
Multiple R-squared: 0.9805, Adjusted R-squared: 0.9795
F-statistic: 945.5 on 5 and 94 DF, p-value: < 2.2e-16In our example here, using different estimation techniques doesn’t change the message regarding the significance of our predictor variables, but it does change the R2 etc.
Model diagnostics help identify issues that could affect model validity.
For example:

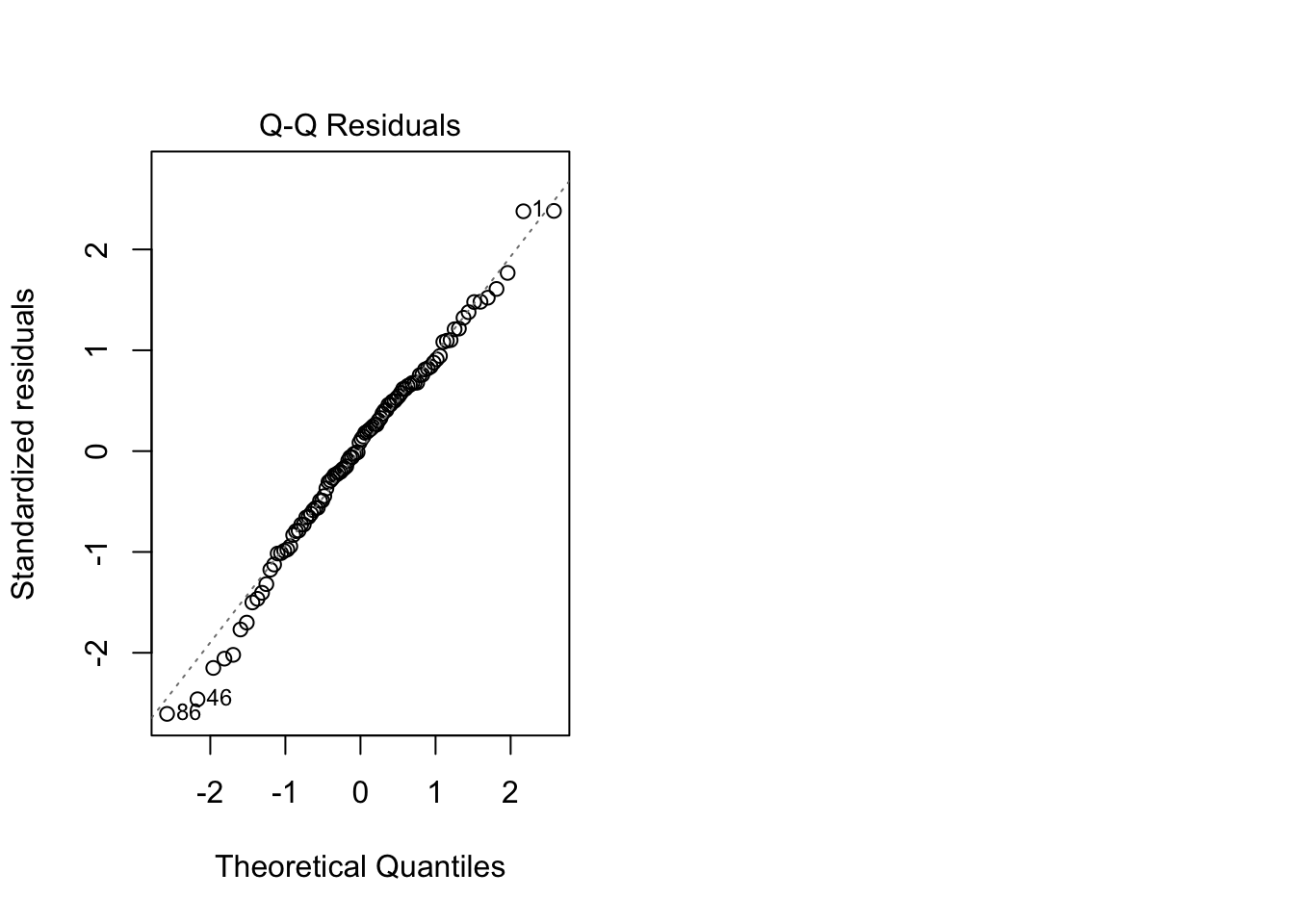

The Q-Q plot checks if residuals follow a normal distribution. If points fall roughly along a straight line, normality holds.
par(mfrow=c(1,2))
plot(model, which=2) # Q-Q Plot

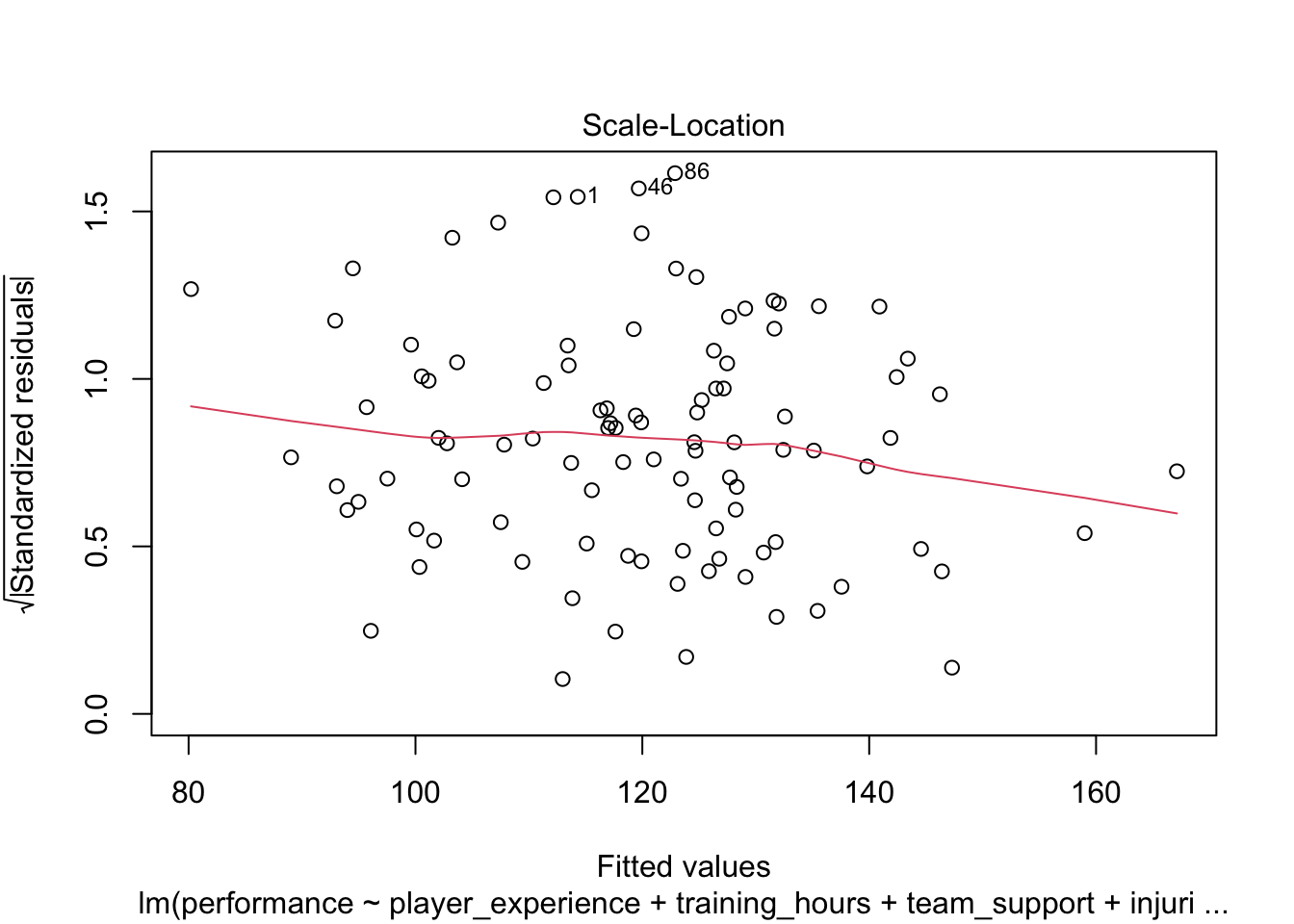

The Scale-Location plot checks for homoscedasticity (constant variance of residuals). If the red trend line is relatively flat, homoscedasticity holds.
plot(model, which=3) # Scale-Location Plot

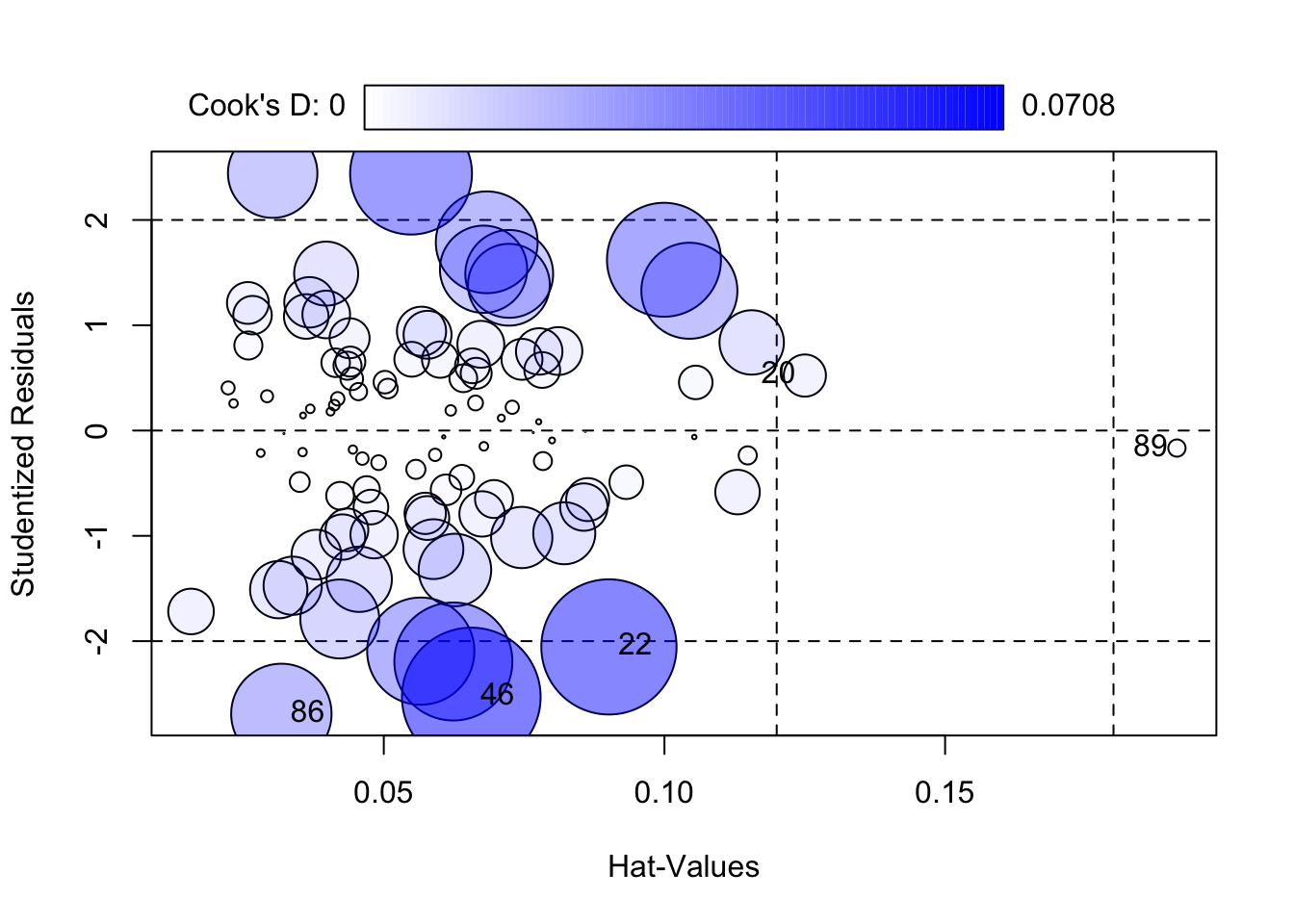

Influence plots help identify observations that have a significant effect on the model.
If certain points are far from others, they may be outliers influencing regression results.
influencePlot(model)
StudRes Hat CookD
20 0.5224792 0.12501668 0.006551291
22 -2.0548211 0.09011153 0.067383106
46 -2.5304695 0.06558727 0.070836800
86 -2.6909048 0.03175097 0.037110601
89 -0.1662877 0.19130100 0.001101578The RESET test checks if important variables are missing or if the functional form is incorrect.
A significant p-value suggests potential misspecification issues. In this case, we appear to be OK!
resettest(model)
RESET test
data: model
RESET = 1.1621, df1 = 2, df2 = 92, p-value = 0.3174
