In this demonstration, I’ll walk through a logistic regression analysis using appropriate R code.
# Load required libraries
library(ggplot2)
library(caret)Loading required package: latticelibrary(pROC)Type 'citation("pROC")' for a citation.
Attaching package: 'pROC'The following objects are masked from 'package:stats':
cov, smooth, varlibrary(ROCR)We’ll start by creating a synthetic dataset to simulate a real-world scenario.
The dataset includes predictors (experience, training hours, team support, injuries, and motivation), and we want to predict whether a player passes or fails based on these predictors.
Note that this outcome is binary outcome, therefore it’s appropriate to use logistic rather than linear regression.
rm(list=ls())
set.seed(123)
n <- 200 # Number of observations
# Predictors
player_experience <- runif(n, 1, 15)
training_hours <- rnorm(n, mean = 10, sd = 3)
team_support <- sample(1:5, n, replace=TRUE)
injuries <- rpois(n, lambda=2)
motivation <- rnorm(n, mean = 7, sd = 1.5)
# We aim for a roughly balanced pass/fail distribution while
# maintaining significant effects for some predictors.
# Adjusted intercept and coefficients
# The chosen values aim for an average logit ~ 0
# at typical predictor values, giving ~50% pass/fail.
logit_prob <- -8 + 0.3 * player_experience + 0.25 * training_hours +
0.5 * team_support - 0.25 * injuries + 0.3 * motivation
prob_pass <- 1 / (1 + exp(-logit_prob))
# Binary outcome: pass (1) or fail (0)
pass_fail <- rbinom(n, 1, prob_pass)
# Create data frame
sports_data <- data.frame(
player_experience, training_hours, team_support,
injuries, motivation, pass_fail = factor(pass_fail)
)
# Label the factor levels
levels(sports_data$pass_fail) <- c("Fail", "Pass")Before modeling, we always want to explore our data.
For example, I’m interested in looking at the number of fails vs. the number of passes:
table(sports_data$pass_fail)
Fail Pass
99 101 We can also visualise the relationship between predictors and the outcome.

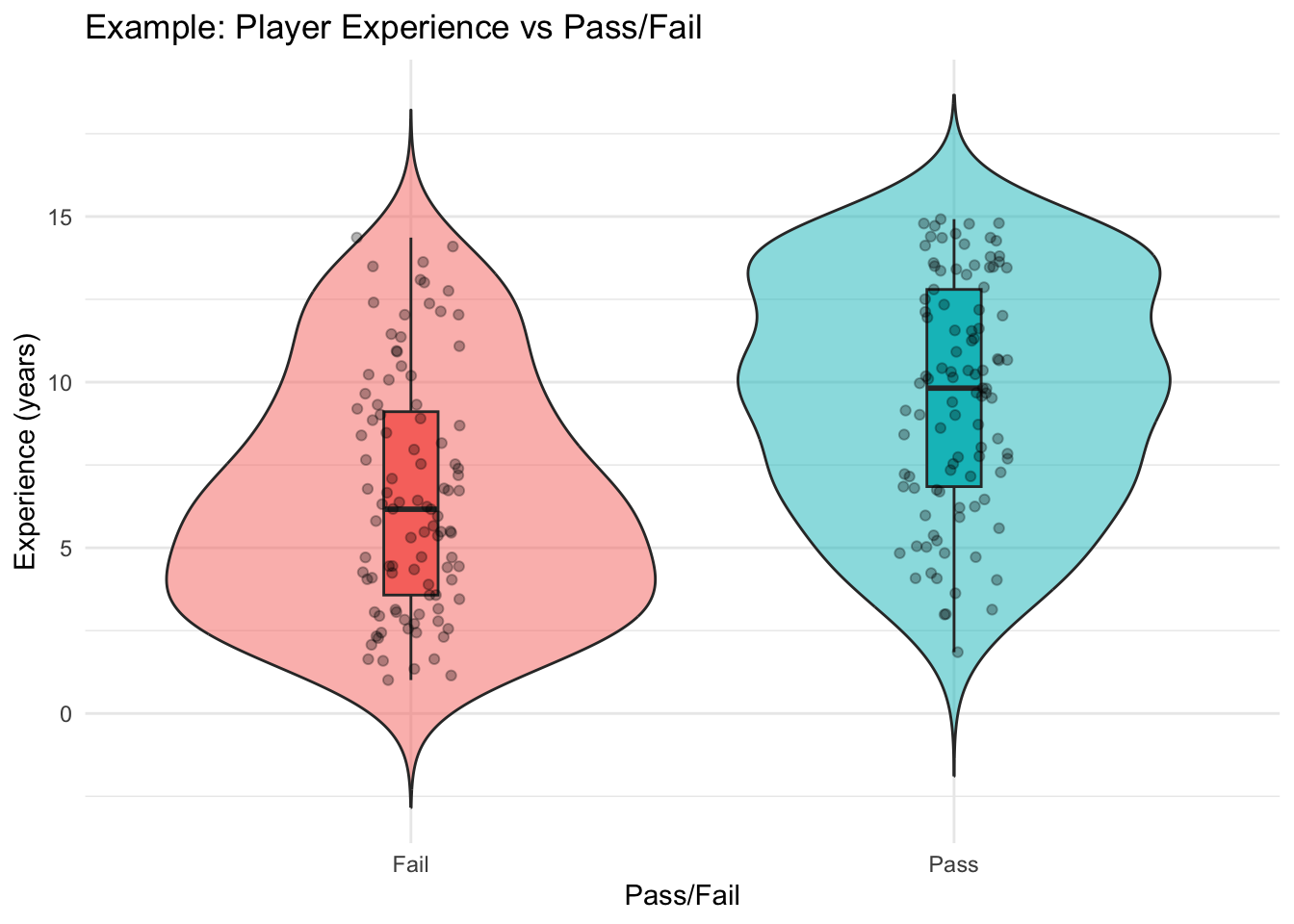

# Boxplot with jitter
ggplot(sports_data, aes(x=pass_fail, y=player_experience, fill=pass_fail)) +
geom_violin(trim=FALSE, alpha=0.5) +
geom_boxplot(width=0.1, outlier.shape=NA) +
geom_jitter(width=0.1, alpha=0.3, color="black") +
labs(title="Example: Player Experience vs Pass/Fail", x="Pass/Fail", y="Experience (years)") +
theme_minimal() +
theme(legend.position="none")

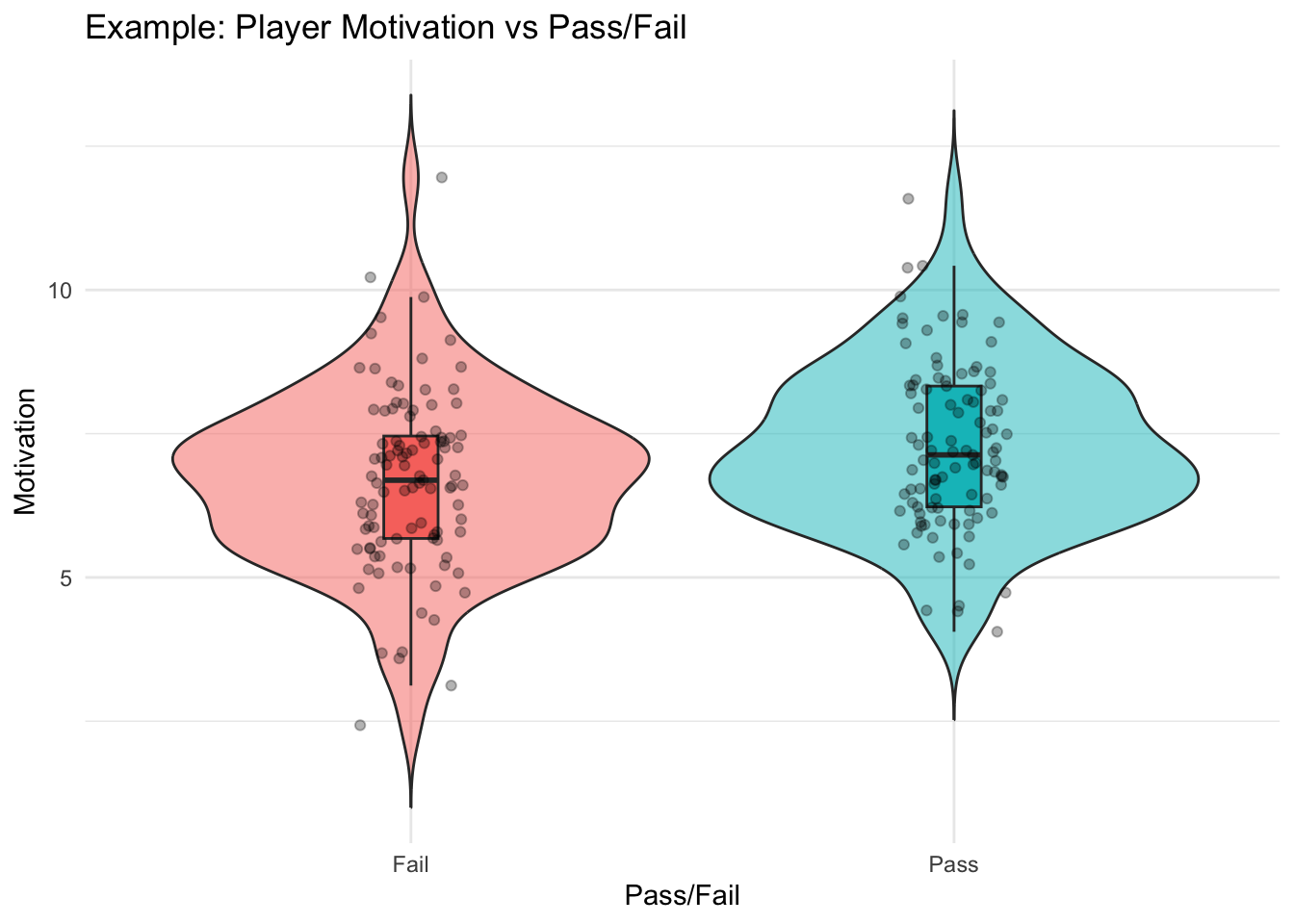

ggplot(sports_data, aes(x=pass_fail, y=motivation, fill=pass_fail)) +
geom_violin(trim=FALSE, alpha=0.5) +
geom_boxplot(width=0.1, outlier.shape=NA) +
geom_jitter(width=0.1, alpha=0.3, color="black") +
labs(title="Example: Player Motivation vs Pass/Fail", x="Pass/Fail", y="Motivation") +
theme_minimal() +
theme(legend.position="none")
Logistic regression models the probability that a binary outcome equals 1 (pass).
The following code models the probability of a player passing (binary outcome pass_fail) based on five predictor variables: player_experience, training_hours, team_support, injuries, and motivation.
The family = binomial argument specifies logistic regression, which estimates how each predictor affects the log-odds of passing.
# Fit logistic regression model
logit_model <- glm(pass_fail ~ player_experience + training_hours + team_support + injuries + motivation,
data = sports_data, family = binomial)
summary(logit_model)
Call:
glm(formula = pass_fail ~ player_experience + training_hours +
team_support + injuries + motivation, family = binomial,
data = sports_data)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -8.85233 1.54291 -5.737 9.61e-09 ***
player_experience 0.32130 0.05466 5.878 4.16e-09 ***
training_hours 0.29553 0.06870 4.302 1.69e-05 ***
team_support 0.37943 0.12975 2.924 0.00345 **
injuries -0.26856 0.13758 -1.952 0.05094 .
motivation 0.38471 0.12333 3.119 0.00181 **
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for binomial family taken to be 1)
Null deviance: 277.24 on 199 degrees of freedom
Residual deviance: 197.23 on 194 degrees of freedom
AIC: 209.23
Number of Fisher Scoring iterations: 5The Estimate represents the change in the log-odds of passing for a one-unit increase in the predictor.
A positive value (e.g., 0.32130 for player_experience) increases the likelihood of passing.
A negative value (e.g., -0.26856 for injuries) decreases the likelihood of passing.
The Std. Error measures the variability of the coefficient estimates.
The z value is the test statistic for each coefficient, calculated as Estimate / Std. Error.
Pr(>|z|) (p-value) indicates the statistical significance of each predictor.
Null Deviance (277.24) measures the model fit with no predictors (just the intercept).
Residual Deviance (197.23) measures model fit after including predictors. A lower value compared to the null deviance suggests that the model improves prediction.
AIC (209.23): The Akaike Information Criterion, balancing model fit and complexity. Remember that lower AIC values indicate a better model.
Odds ratios help us interpret the coefficients more intuitively. They aren’t produced automatically, but we can calculate them as follows:
exp(coef(logit_model)) # Convert log-odds to odds ratios (Intercept) player_experience training_hours team_support
0.0001430481 1.3789192101 1.3438325098 1.4614569113
injuries motivation
0.7644831381 1.4691824445 These values are the exponentiated coefficients from the logistic regression model, representing odds ratios.
Odds Ratio > 1: Increases the odds of passing. In our example:
player_experience = 1.38: For each additional year of experience, the odds of passing increase by 38%, holding other factors constant.
motivation = 1.47: Higher motivation increases the odds of passing by 47% per unit increase.
Odds Ratio < 1: Decreases the odds of passing. In our example:
injuries = 0.76: More injuries reduce the odds of passing. Specifically, each additional injury reduces the odds by 23.5% (1 - 0.764).(Intercept) = 0.00014: Represents the odds of passing when all predictors are zero, but effectively irrelevant here since zero isn’t meaningful for most predictors (can you have zero motivation?)
To check our model, we can use it to create predicted outcomes, and compare these predictions with what actually happened.
This code produces predictions (pass/fail) based on the model we created earlier.
sports_data$predicted_prob <- predict(logit_model, type = "response")

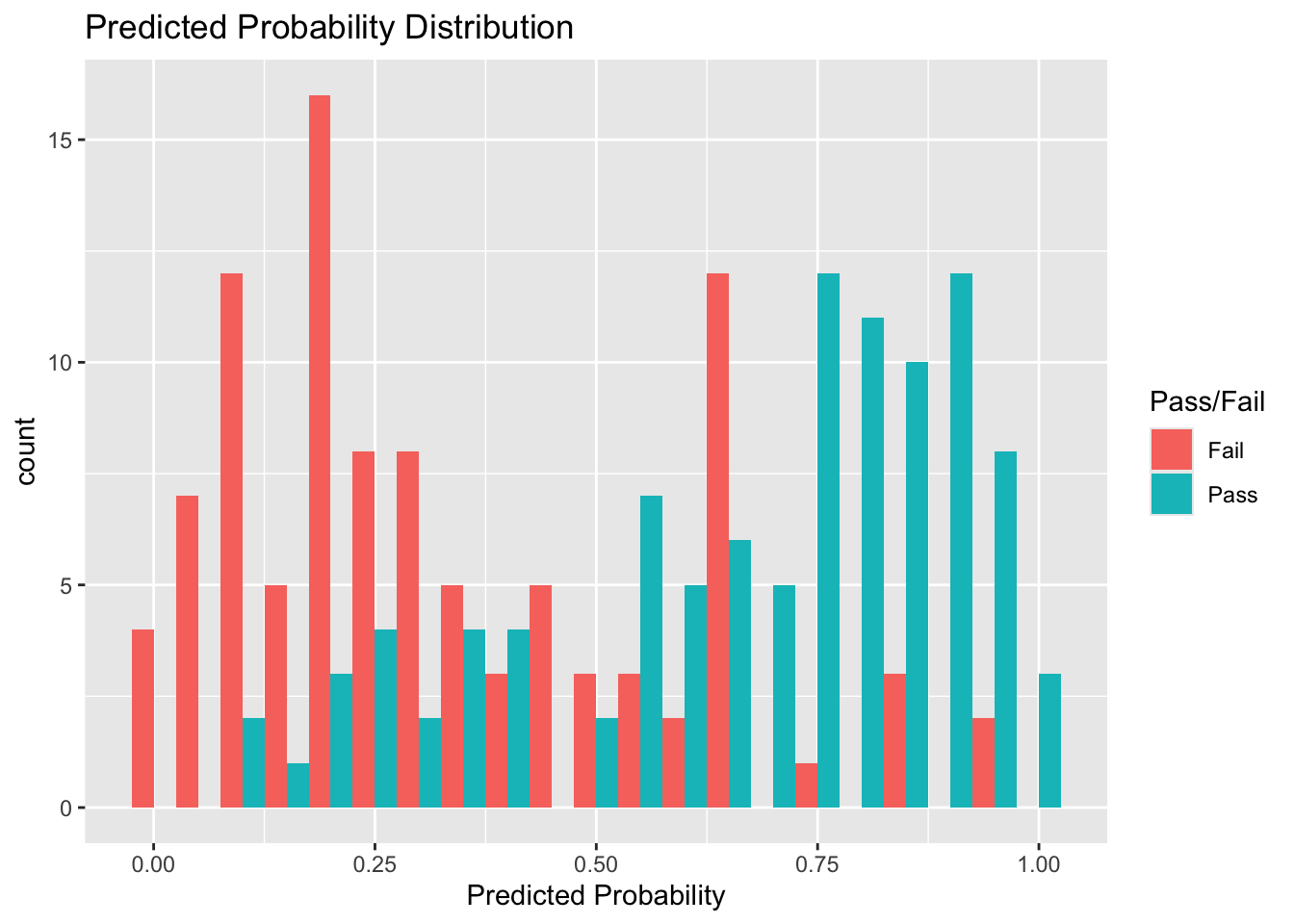

# Plot predicted probabilities
ggplot(sports_data, aes(x=predicted_prob, fill=pass_fail)) +
geom_histogram(binwidth=0.05, position="dodge") +
labs(title="Predicted Probability Distribution", x="Predicted Probability", fill="Pass/Fail")
This calculates the predicted probabilities of passing for each observation in the dataset based on the fitted logistic regression model (logit_model).
The predict() function generates predictions from the model:
logit_model: The logistic regression model we’ve trained.
type = "response": This tells R to return the probabilities (ranging from 0 to 1) rather than the raw log-odds.
For each player in sports_data, the model uses the values of predictors (player_experience, training_hours, etc.) to calculate the probability of the player passing.
These probabilities are stored in a new column called predicted_prob in the sports_data dataframe.
A value close to 1 means a high probability of passing.
A value close to 0 means a high probability of failing.
For example:
predicted_prob = 0.85 → 85% chance of passing.
predicted_prob = 0.30 → 30% chance of passing (70% chance of failing).
The ROC curve evaluates model performance.
AUC (Area Under the Curve) indicates model quality.
roc_curve <- roc(sports_data$pass_fail, sports_data$predicted_prob)Setting levels: control = Fail, case = PassSetting direction: controls < casesplot(roc_curve, main="ROC Curve")
auc(roc_curve)Area under the curve: 0.8409In this code, we calculate the Receiver Operating Characteristic (ROC) curve using the roc() function from the pROC package.
Inputs:
sports_data$pass_fail: The actual outcomes (Pass/Fail).
sports_data$predicted_prob: The predicted probabilities of passing from the logistic regression model.
Purpose: The ROC curve plots the True Positive Rate (Sensitivity) against the False Positive Rate (1 - Specificity) at different threshold levels, helping evaluate the model’s performance.
Then we plot the ROC curve.
Interpretation:
The closer the curve is to the top-left corner, the better the model’s performance (indicating high sensitivity and specificity).
A diagonal line from (0,0) to (1,1) represents a model with no discriminatory power (random guessing).
Finally, we calculate the AUC.
The Area Under the Curve (AUC), which quantifies the overall performance of the model.
Interpretation of AUC:
AUC = 1.0: Perfect model.
AUC > 0.9: Excellent model.
AUC between 0.7 and 0.9: Good model.
AUC around 0.5: No better than random guessing.
We’ll encounter confusion matrices a lot during this module. Here’s an example of how they can be used to evaluate the output of a logistic regression:
# Adjust predicted_class to match the factor levels of pass_fail
predicted_class <- ifelse(sports_data$predicted_prob > 0.5, "Pass", "Fail")
# Convert to factors with the same levels
predicted_class <- factor(predicted_class, levels = c("Fail", "Pass"))
# Confusion Matrix
confusionMatrix(predicted_class, sports_data$pass_fail)Confusion Matrix and Statistics
Reference
Prediction Fail Pass
Fail 74 21
Pass 25 80
Accuracy : 0.77
95% CI : (0.7054, 0.8264)
No Information Rate : 0.505
P-Value [Acc > NIR] : 1.201e-14
Kappa : 0.5398
Mcnemar's Test P-Value : 0.6583
Sensitivity : 0.7475
Specificity : 0.7921
Pos Pred Value : 0.7789
Neg Pred Value : 0.7619
Prevalence : 0.4950
Detection Rate : 0.3700
Detection Prevalence : 0.4750
Balanced Accuracy : 0.7698
'Positive' Class : Fail
True Negatives (TN = 74): Number of correctly predicted Fails.
False Negatives (FN = 21): Number of incorrectly predicted Fails (when it was actually Pass).
False Positives (FP = 25): Number of incorrectly predicted Passes (when it was actually Fail).
True Positives (TP = 80): Number of correctly predicted Passes.
Accuracy (0.77) gives us the proportion of correctly classified cases:
95% CI (0.7054, 0.8264)
No Information Rate (0.505)
P-Value [Acc > NIR] (1.201e-14)
Tests if the model’s accuracy is significantly better than random guessing.
In this case, a very small p-value indicates high statistical significance.
Kappa (0.5398) measures agreement between predictions and actual outcomes, adjusted for chance.
0.5–0.6: Suggests moderate agreement.
Note that values closer to 1 indicate strong agreement.
McNemar’s Test (p = 0.6583):
Tests for bias in classification errors.
A non-significant p-value (> 0.05) suggests no significant bias in error distribution.
Sensitivity (0.7475): (Recall/True Positive Rate)
Proportion of actual Fails correctly predicted:
Model correctly identifies ~75% of actual Fails.
Specificity (0.7921): (True Negative Rate)
Proportion of actual Passes correctly predicted:
Model correctly identifies ~79% of actual Passes.
Positive Predictive Value (0.7789): (Precision)
Negative Predictive Value (0.7619)
Prevalence (0.4950)
Detection Rate (0.3700)
Detection Prevalence (0.4750)
Balanced Accuracy (0.7698):
77% Accuracy: Suggests that our model offers strong predictive performance.
Balanced Sensitivity & Specificity: Our model seems to handle both classes (Pass/Fail) well.
Kappa (0.54): There is moderate agreement beyond chance.
Our model gives significant improvement over random guessing (p < 0.001).
There are a number of different plot types we can use to extend our understanding of the logistic regression model.
Some examples are:
This shows how well the predicted probabilities align with actual outcomes.

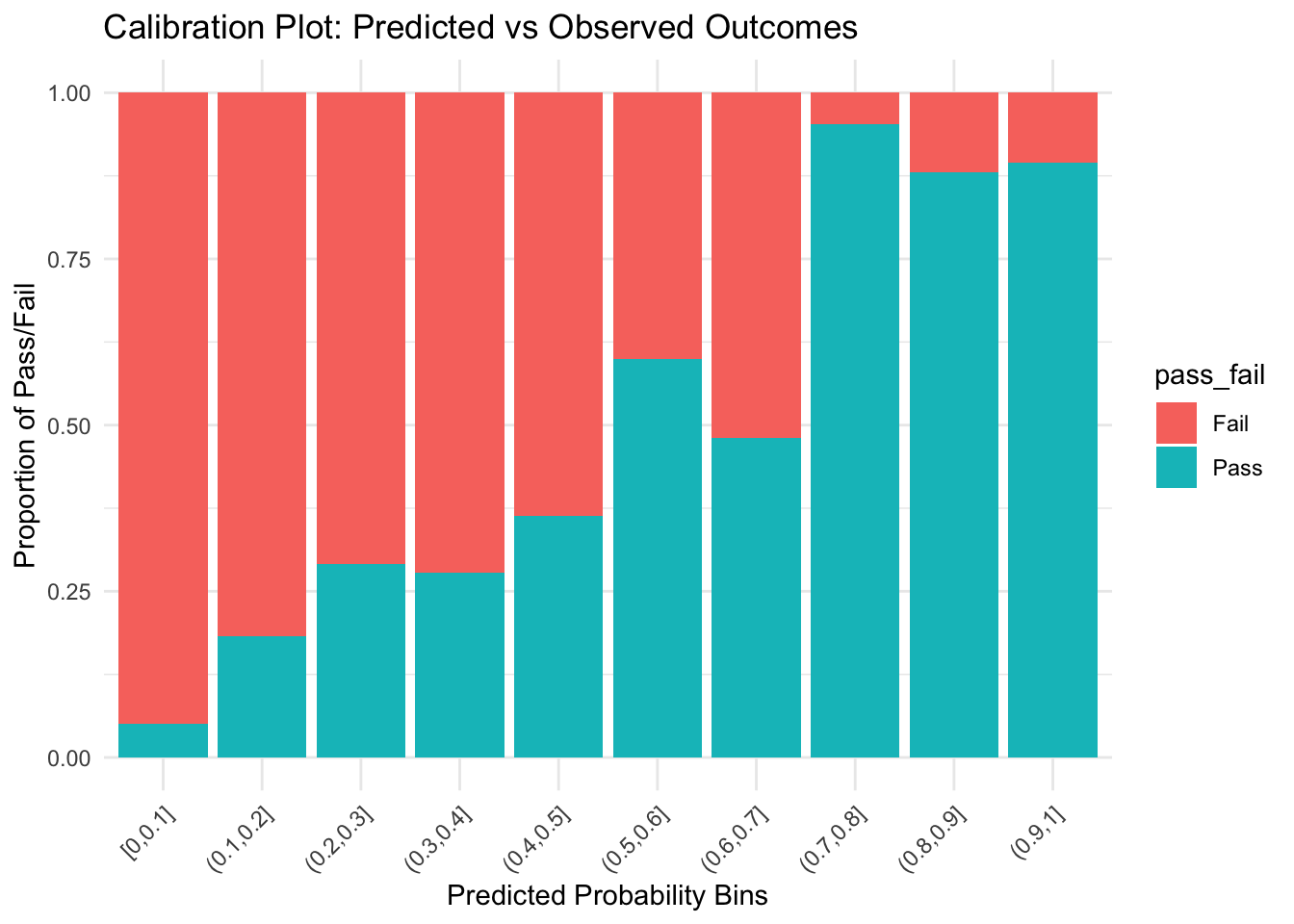

# Calibration plot to compare predicted probabilities vs actual outcomes
library(ResourceSelection)ResourceSelection 0.3-6 2023-06-27hoslem.test(as.numeric(sports_data$pass_fail) - 1, sports_data$predicted_prob)
Hosmer and Lemeshow goodness of fit (GOF) test
data: as.numeric(sports_data$pass_fail) - 1, sports_data$predicted_prob
X-squared = 7.0686, df = 8, p-value = 0.5293# Create bins for calibration
sports_data$prob_bin <- cut(sports_data$predicted_prob, breaks=seq(0,1,by=0.1), include.lowest=TRUE)
# Plot observed vs predicted probabilities
ggplot(sports_data, aes(x=prob_bin, fill=pass_fail)) +
geom_bar(position="fill") +
labs(title="Calibration Plot: Predicted vs Observed Outcomes",
x="Predicted Probability Bins", y="Proportion of Pass/Fail") +
theme_minimal() +
theme(axis.text.x = element_text(angle=45, hjust=1))
Interpretation:
This helps see the separation between “Pass” and “Fail” predictions.

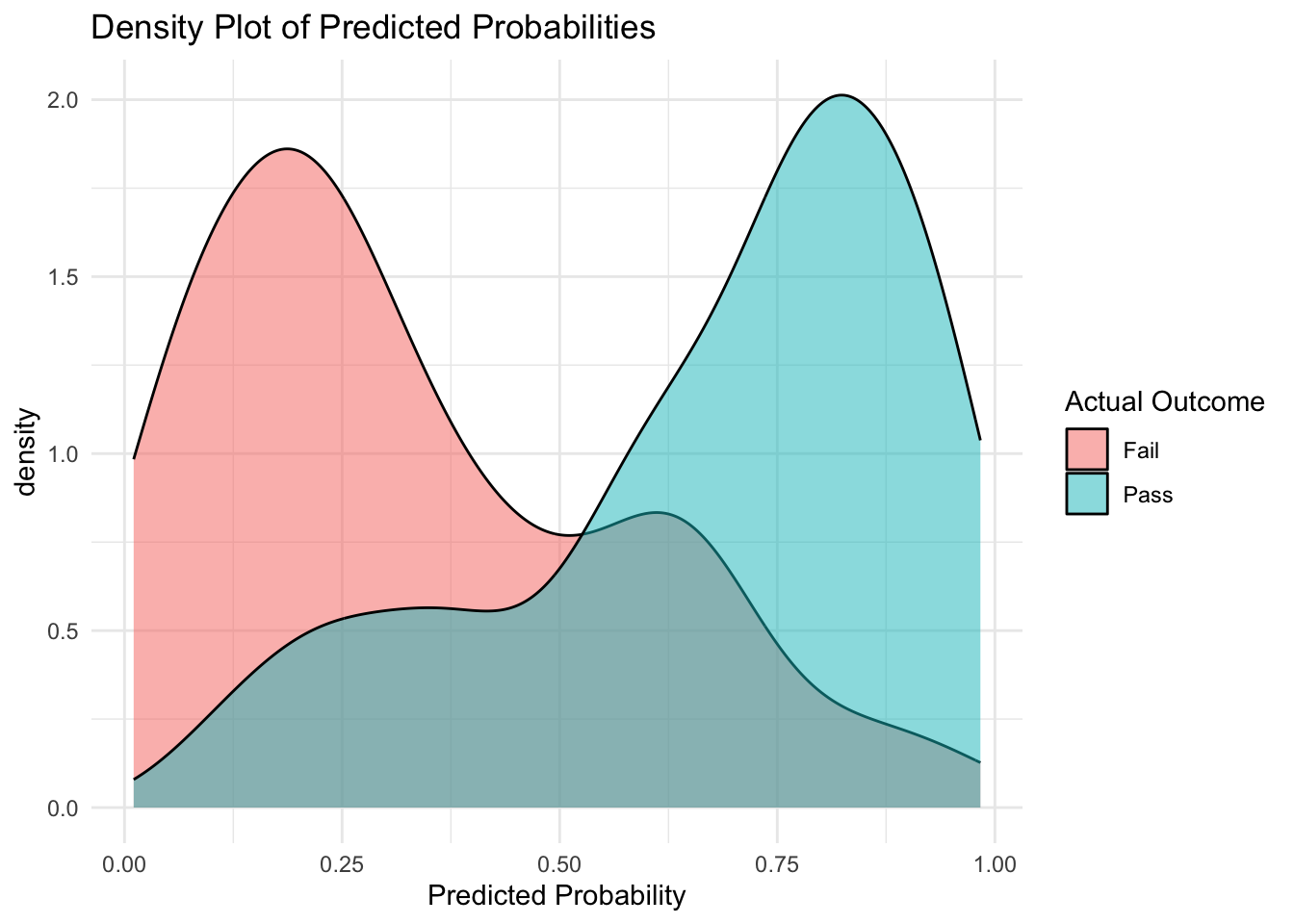

# Density plot for visualising separation of predicted probabilities
ggplot(sports_data, aes(x=predicted_prob, fill=pass_fail)) +
geom_density(alpha=0.5) +
labs(title="Density Plot of Predicted Probabilities",
x="Predicted Probability", fill="Actual Outcome") +
theme_minimal()
Interpretation:
Good Model: Distinct peaks for “Pass” and “Fail” with minimal overlap.
Poor Model: High overlap between the two distributions.

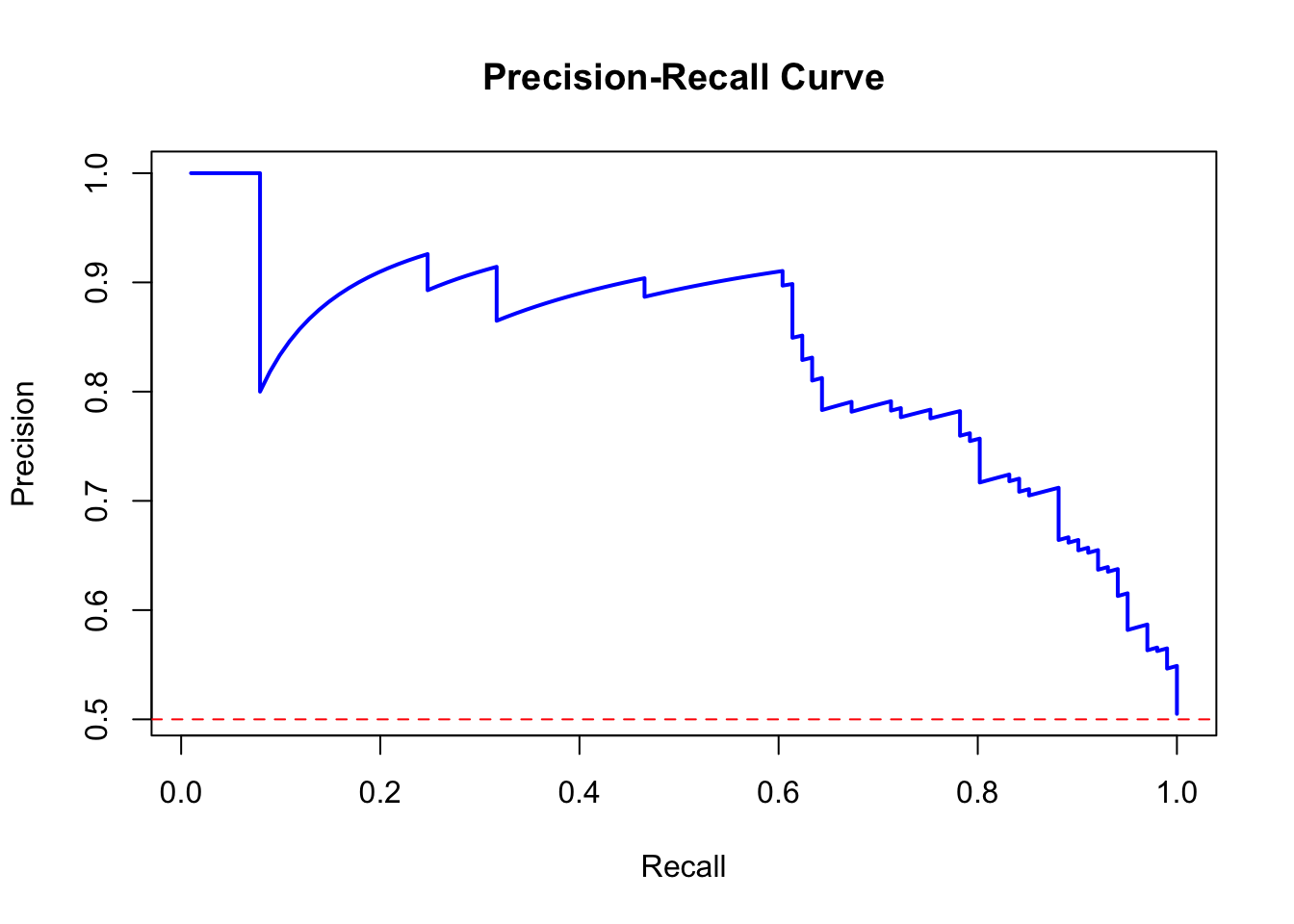

Useful when dealing with imbalanced data, highlighting performance on positive predictions.
Unlike the ROC curve, which focuses on the trade-off between true positive and false positive rates, the PR curve focuses on precision and recall.
# Precision-Recall Curve
pred <- prediction(sports_data$predicted_prob, sports_data$pass_fail)
pr <- performance(pred, measure = "prec", x.measure = "rec")
# Plotting Precision-Recall curve
plot(pr, main="Precision-Recall Curve", col="blue", lwd=2)
abline(h=0.5, col="red", lty=2) # Baseline for random guessing
Interpretation:
We can also explore interaction effects.
logit_interaction_model <- glm(pass_fail ~ player_experience * training_hours + team_support + injuries + motivation,
data = sports_data, family = binomial)
summary(logit_interaction_model)
Call:
glm(formula = pass_fail ~ player_experience * training_hours +
team_support + injuries + motivation, family = binomial,
data = sports_data)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -6.95181 2.00170 -3.473 0.000515 ***
player_experience 0.05275 0.19951 0.264 0.791492
training_hours 0.10716 0.15054 0.712 0.476548
team_support 0.38320 0.13078 2.930 0.003388 **
injuries -0.25784 0.13902 -1.855 0.063648 .
motivation 0.38244 0.12263 3.119 0.001816 **
player_experience:training_hours 0.02734 0.01998 1.368 0.171168
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for binomial family taken to be 1)
Null deviance: 277.24 on 199 degrees of freedom
Residual deviance: 195.27 on 193 degrees of freedom
AIC: 209.27
Number of Fisher Scoring iterations: 5This model includes an interaction term between player_experience and training_hours, represented as player_experience*training_hours. It helps identify if the effect of one variable on the outcome depends on the level of the other variable.
Team Support (p = 0.003) and Motivation (p = 0.0018) are significant predictors, meaning they have a strong, independent effect on the likelihood of passing.Injuries are marginally significant (p ≈ 0.06), suggesting a potential negative effect on passing.player_experience * training_hours)player_experience and training_hours increase together, there’s a slight positive effect on the likelihood of passing.The interaction between experience and training hours is not significant, suggesting that their combined effect is close to additive (no meaningful synergy).
The main effects of team support and motivation are important drivers of passing success.
We might consider removing the interaction term to simplify the model, as it doesn’t improve predictive power significantly.
